HP MAX MK2 7.5J Carbon Pump-Action Kit from UE3D

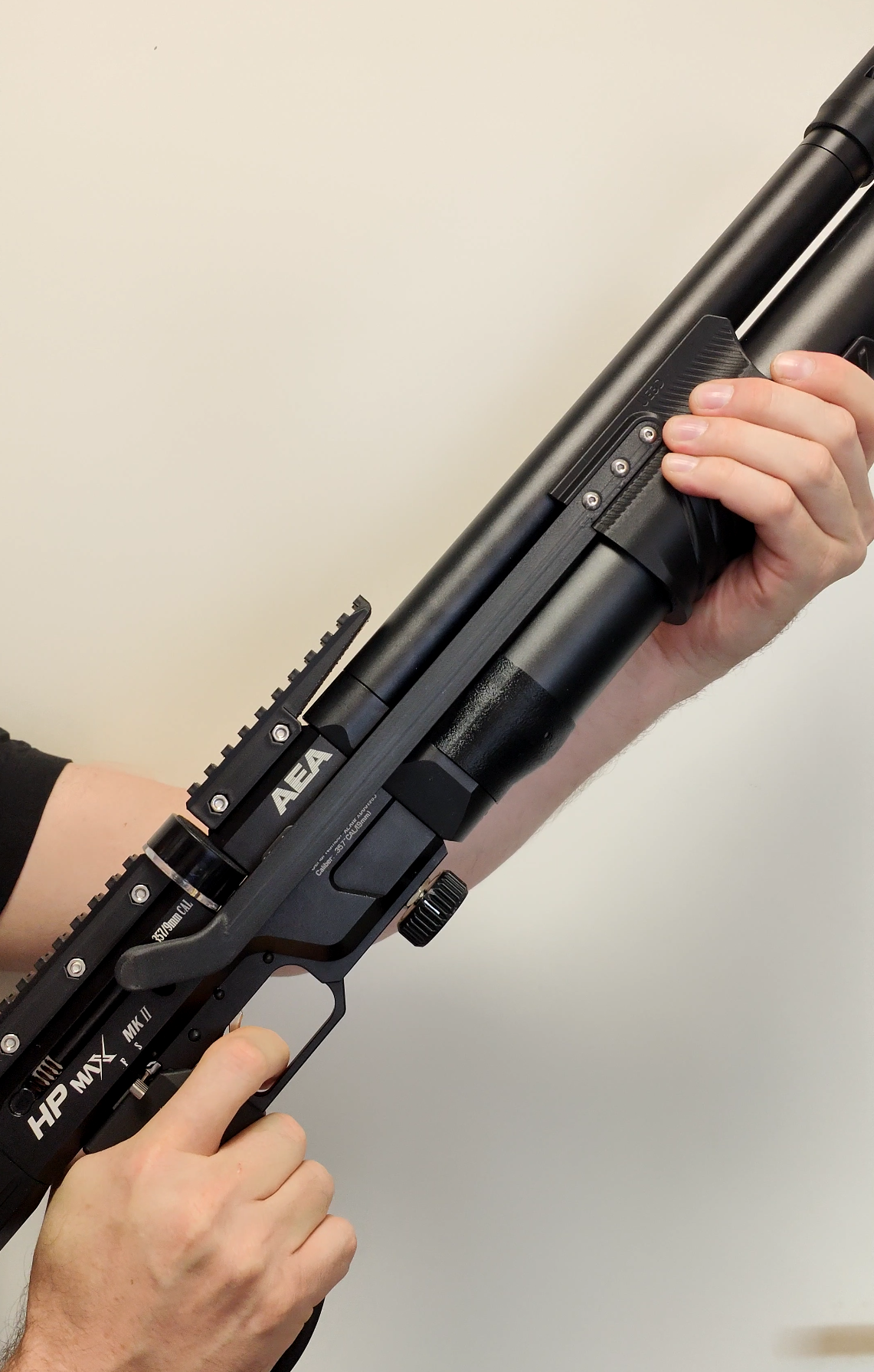

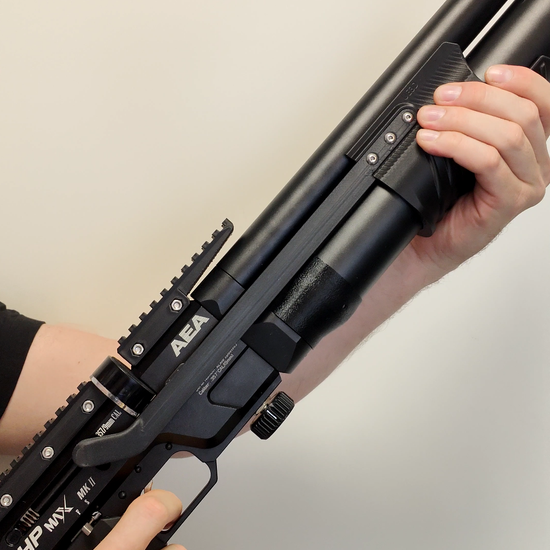

HP MAX MK2 Carbon Pump Action Kit

The HP MAX MK2 Carbon Pump-Action Kit is the ideal addition to your existing HP Max Cal. .35 cal. This innovative retrofit kit can be installed directly in the field and offers a significant improvement in handling and functionality.

Now new: Carbon Pump-Action Kit variant for the Heavy Repeater

Advantages of the kit:

Easier Operation: This kit allows you to conveniently operate the bolt lever with your left hand. This allows you to keep the weapon aimed at the target while significantly increasing the rate of fire.

Increased efficiency: The improved operation not only increases the home defense capability, but also increases the fun factor of shooting.

Easy installation: No major modifications to your HP Max are required to install the kit. All you have to do is unscrew the cover cap, which can be done with just one screw.

Innovative sliding pads: The new sliding pads massively reduce friction, making repeating quick and "smooth". This protects the bottle and extends the service life of the components.

This kit is a simple but effective replacement that will add a new dimension of functionality to your air rifle. An absolute must for all owners of the HP Max Cal. .35 cal!

Compatible with HP MAX MK2 7.5J standard tension lever. Not compatible with the tension lever kit heavy or locking.

Material:

• high-performance plastic, 3D printed
• Color: Black
• scratch-resistant
• UV-resistant
• Extremely weather-resistant
• Light
• High-quality surface

Scope of delivery (Standard HP MAX MK2 Carbon Pump-Action Kit)

• 1x pump-action handle
• 1x carbon rod
• 6x sliding pads
• 1x lever attachment
• 3x screws

Scope of delivery (Heavy HP MAX MK2 Carbon Pump-Action Kit)

• 1x pump-action handle
• 1x Carbon Rod Heavy
• 6x sliding pads
• 1x lever cover
• 3x screws

Scope of delivery (upgrade to Heavy HP MAX MK2 Carbon Pump-Action Kit). Attention: Standard HP MAX MK2 Carbon Pump-Action Kit must be present.

• 1x Carbon Rod Heavy

• 1x lever cover


NEW: Video assembly instructions (Standard HP MAX MK2 Carbon Pump-Action Kit)

A compatible Picatinny mount can be found here .

Step-by-step assembly instructions for the standard HP MAX MK2 Carbon Pump-Action Kit:

1. Replacing the repeating lever attachment:

• Remove the original attachment from the repeating lever.
• Replace it with the rubber attachment provided.

2. Inserting the glide pads into the UE3D Pump Action handle:

a) Insert first side: Insert one side of the glide pad into the slots provided as far as possible. Then bend the glide pad to insert the other side.

b) Flatten: Flatten the glide pad so that both sides are completely seated in the slots. The glide pad should lie flat and have no raised areas.

c) Correction: If one corner of the glide pad is raised, remove it and repeat steps a and b.

3. Assembling the Pump Action Handle:

• Slide the pump action handle over the bottle.
• Check the sliding motion to make sure everything is working smoothly.

4. Attaching the carbon rod:

• Screw the carbon rod to the Pump Action handle using the three screws provided.

5. Fixing the carbon rod:

• Press the carbon rod firmly over the rubber attachment.

6. Enjoy the improved functionality:

• Have fun with the new functionality of your air rifle!
• If you have any questions or problems, please contact us using the contact form.

Assembly instructions for the Heavy HP MAX MK2 Carbon Pump-Action Kit:

Most of the steps are the same as with the standard HP MAX MK2 Carbon Pump-Action Kit, only here we use the heavy rod and pull the rubber cover over the right heavy repeating lever before screwing it in. Then use a little force to push the rod/ring over the cover into the sliding groove provided.

Installation instructions for Upgrade Heavy HP MAX MK2 Carbon Pump-Action Kit:

Simply replace the standard carbon rod with the heavy carbon rod and follow the assembly instructions for the Heavy HP MAX MK2 Carbon Pump-Action Kit.
